2000L Stainless Steel Fermentation Tanks in Philippines

1000l stainless steel fermentation tank (6)

Project Detail:

Location:Philippines



When one of our customers decided to scale up their operations, they turned to us for advanced brewing and distilling solutions. By upgrading with stainless steel fermentation tanks and supporting equipment, they’ve successfully boosted capacity, expanded their product range, and strengthened their position in the craft beverage market.

Bigger Capacity, Better Consistency

To meet growing demand, the customer invested in 1000L and 2000L stainless steel fermentation and maturation tanks. These high-capacity vessels provide reliable performance and consistency, allowing for greater production output without compromising quality.

Unlocking More Flavors

With precision carbonation and conditioning systems, the brewery can now craft a wider range of premium beers. The flexibility of stainless steel fermentation tanks ensures each batch maintains the right flavor balance, aroma, and mouthfeel.

New Horizons in Distilling

Expansion wasn’t limited to beer. Eight dedicated 1000L stainless steel fermentation tanks were added to support distilling operations. This strategic move opened the door to whiskies, vodkas, and other spirits, helping the customer diversify their portfolio.

Trusted Quality and Sanitation

Supporting tanks, a sanitation tank, and optional sanitary-grade valves and level gauges were integrated into the system. These ensure clean, stable, and reliable operations—critical for maintaining high-quality beverages.

Main Expansion Configurations

Brewery Expansion

  • Hot water tank 2000L
  • Cold water tank 2000L
  • Fermentation tank 1000L × 2
  • Fermentation tank 2000L × 2
  • Maturation tank 1000L × 4
  • Maturation tank 2000L × 6
  • Sanitation tank 500L
  • Optional: Sanitary level gauge & valves

Distillery Expansion

  • Fermentation tank 1000L × 8

2000L Fermenter Standard Configuration

METO designed and produced fermentation system meet the all the craft beer fermentation process needs, meet the demanding requirements of brewers.customized to meet the requirements of different space.Production process is strictly controlled according to ISO9001 quality management system. Three times pressure tests ensure all fermentation tanks meet the use standards and safety standards.

  • Capacity:50L-100000L
  • Material : SUS 304,SUS 316
  • Implement the 1OS9001 quality management systembccording to drawing. professional and perfect factory internal quality inspection process and test record;
  • Laser cutting and argon shielded welding.interior passivating treatment for all beer contact parts,external wire drawing treatment, polishing precision ≤0.4jm
  • Insulation: Low thermal conductivity PU
  • Port connection way: DIN,ISO.SMS and other customized standards . Cooling jacket test pressure 0.3Mpa
  • Tank working pressure 0.15Mpa ,test pressure 0.3Mpa
  • Dished top full polished , conical bottom with 60° cone (customizable)
  • High-precision temperature sensor, automatic temperature control, real-time feedback of temperature curve,can remote operation
  • With Safety valve, pressure regulating valve, sampling valve. Rotating racking arm beer outlet , hop add pot, carbonation stone,CIP washing ball,etc.

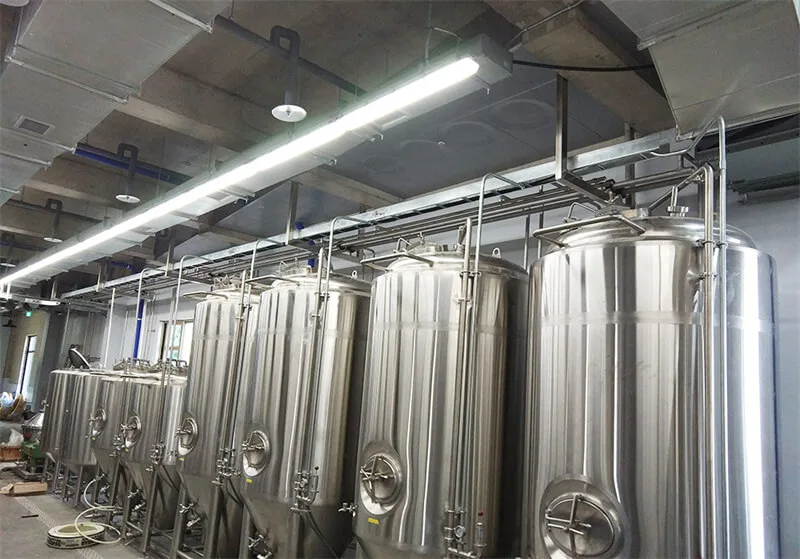

1000l stainless steel fermentation tank (1)

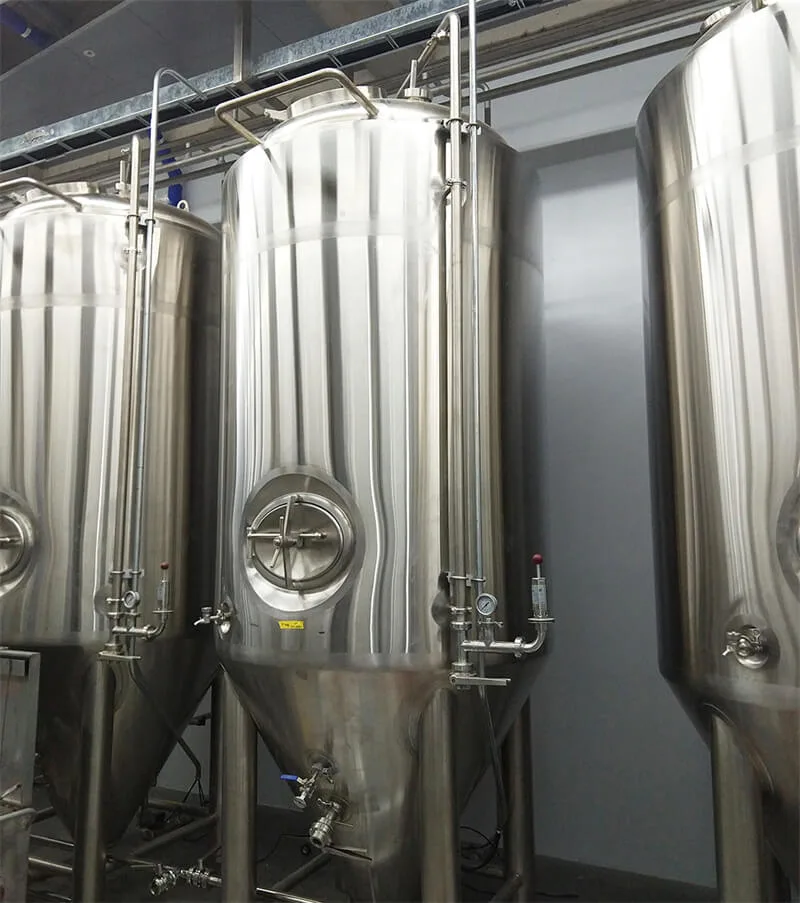

1000l stainless steel fermentation tank (5)

Conclusion

This expansion project demonstrates how stainless steel fermentation tanks play a crucial role in helping breweries and distilleries grow. With larger capacity, diversified products, and assured quality, our customer is now better positioned to meet market demand and explore new opportunities in craft beverages.

To adapt to the use of different sizes of breweries, Meto equipment produced a variety of sizes and specifications of fermentation tanks. Customers can choose the most suitable fermentation tank according to their needs. As there are many types of beverages that need to be fermented, there are also many types of fermenters. Currently, Meto equipment has a lot of experience in the production of beer, wine, cider, and kombucha fermentation vessel, our engineers can also customize the design of fermenters according to your requirements.Feel free to get in touch with us
