Dettaglio del progetto:
Location：China
2,500L four vessel brewhouse system,per batch brewing capacity is 2.5KL batch , designed for 4-5 brews per day. Comprising mash tun, lauter tank, brew kettle, and whirlpool tank , with pneumatic spent grain discharge and advanced automation control system. It is features high production capacity, great flexibility and intelligent manage-ment, and is capable of rapidly expanding production scale to meet the growing market demand.
Phase l includes2.5KL and 5KL fermentation tank,annual beer brewing capacity of 1,200KL. Phase ll expansion plan to add 10KL fermentation tank ,It is can brewing3,000KL beer per year produce in a full capacity.Fermentation corridor equipped with dedicated wort, beer, CIP, CO2, and sewage piping for streamlined operations.
The main configuration of 2500L brewery equipment
- 1500Kg/h-2000Kg/h Malt miller System and Pipe chain conveying system
- 4 vessels brewhouse with Mash tank+Lauter tun+brew Kettle +Whirlpool tank
- 8000L Hot water tank
- 8000L Cold water tank
- 8000L RO Water Tank
- Glycol Cooling Unit With 8000L Glycol Water Tank +Glycol Water Chiller ICA-20+Glycol Water Pump
- 1000L CIP Hot Alkali Tank
- 1000L Acid tank
- 1000L CIP Sterile Water Tank
- 1000L CIP Hot Water Tank
- Brewery Control Unit
- Brewery Pipeline Gallery Unit
- Beer Bottle and Cans Filling Line

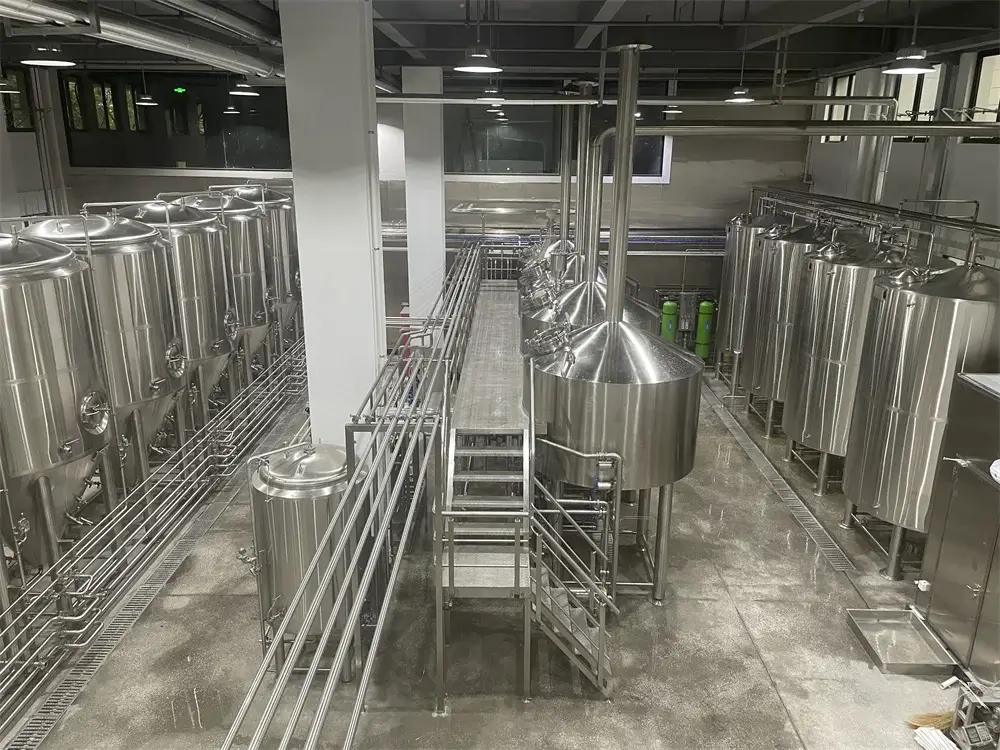

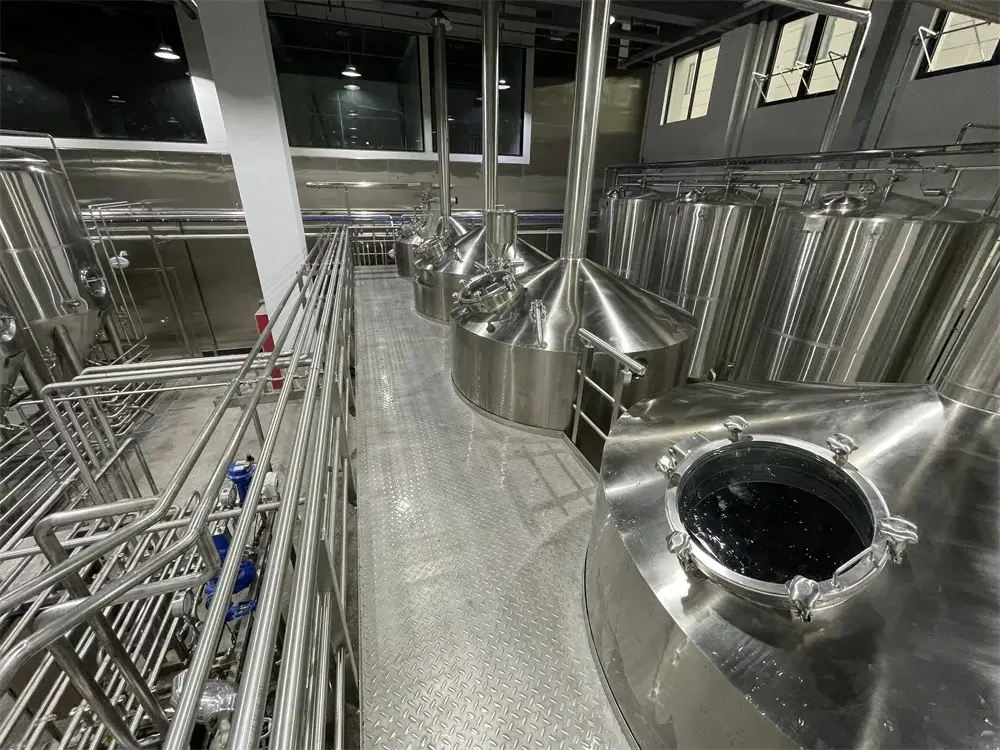

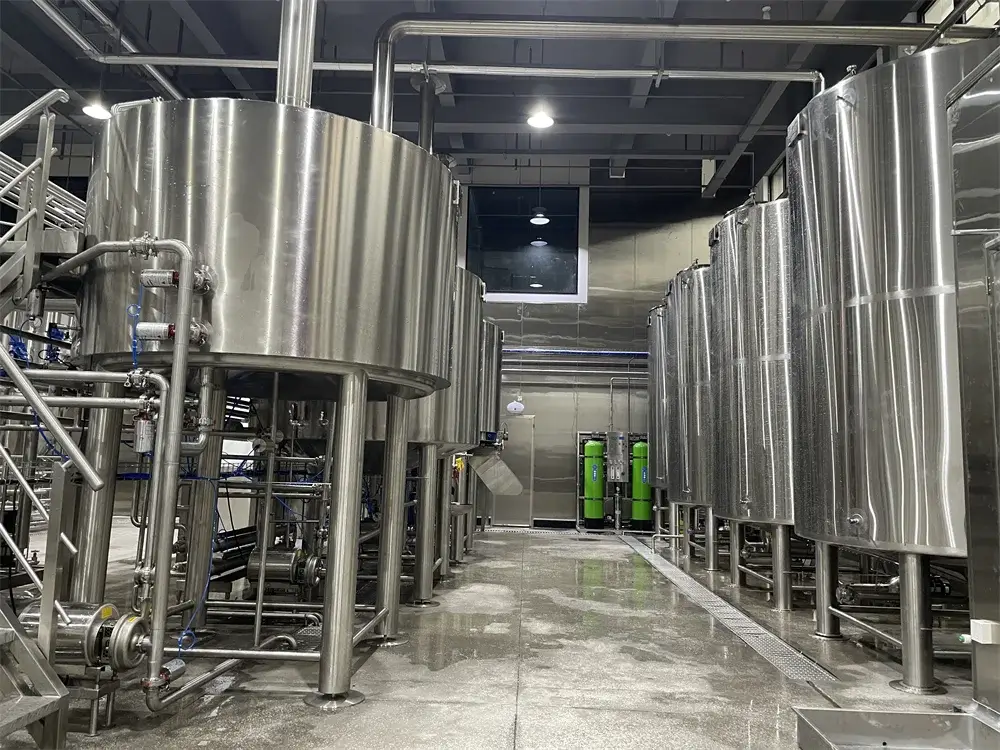

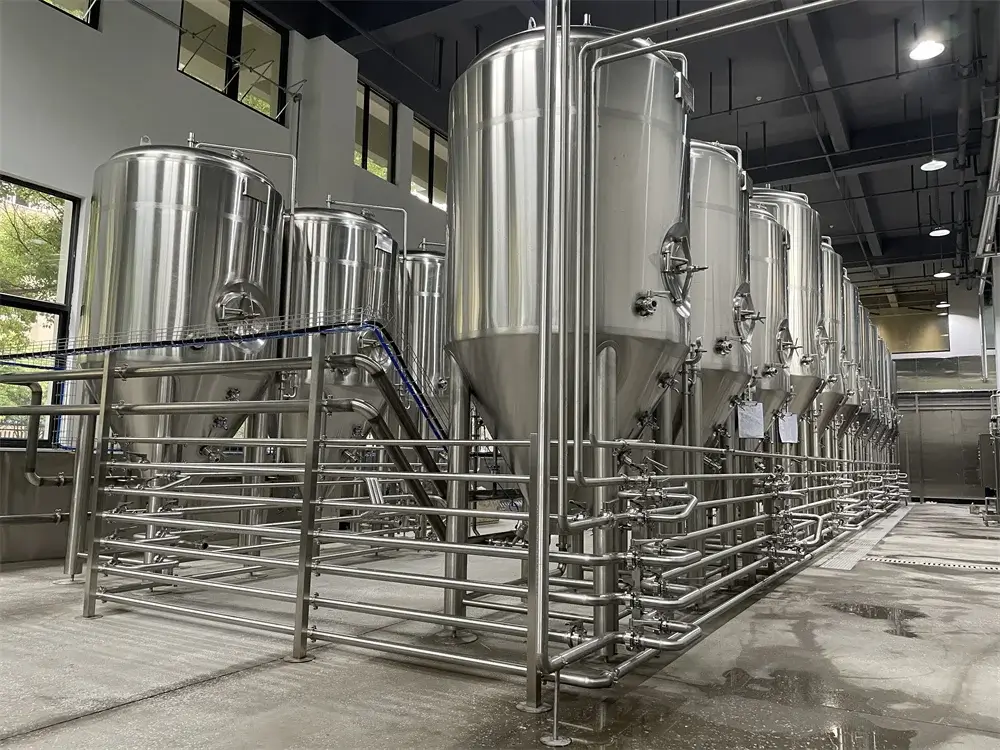

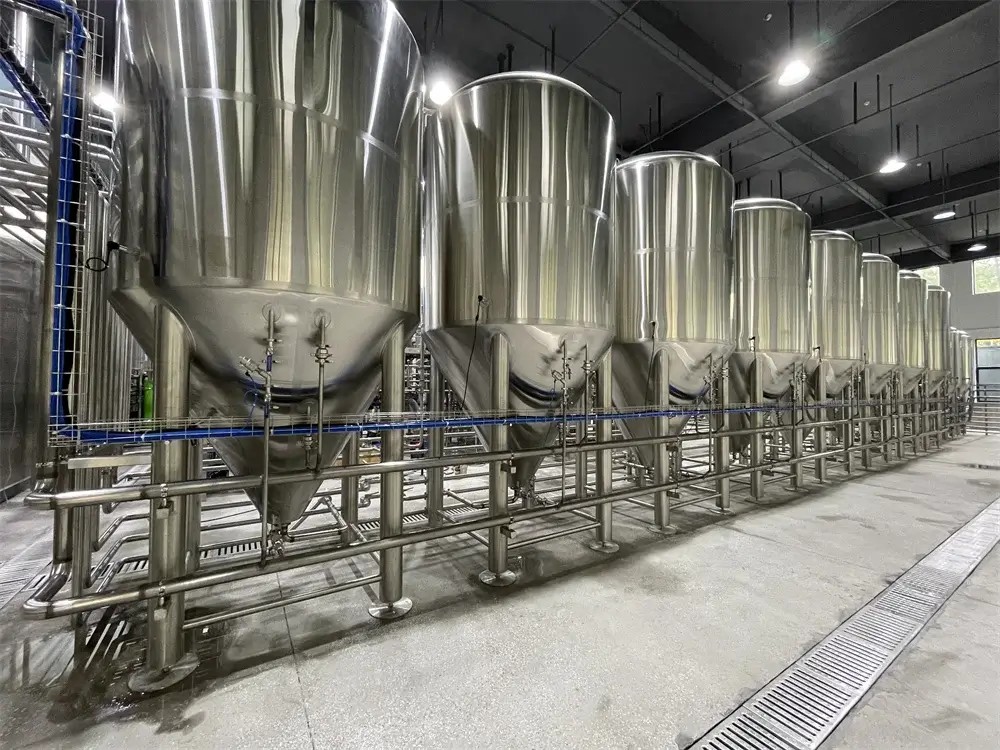

2500L Brewery Turnkey System Equipment Display
2500L turnkey system production standard
- 2500L attrezzature per birreria is suitable for breweries with novel structure and beautiful appearance
- All structures are made of SUS 304 food-grade stainless steel, and all pipes are made of SUS304
- All tanks come with data boards including test data and serial numbers
- All storage tanks will be tested and inspected in NDT room for construction and quality control inspection
- All jackets will be tested using water pressure test, test pressure: 0.4Mpa (4 Bar) and working pressure: 0.2Mpa (2Bar)
- All water tanks will be pressure tested for 48 hours before leaving the MICET factory;
- All welds are welded using laser welding clamps to ensure uniform shape and undergo acid pickling and passivation treatment.
- All tank interiors are mirror polished, Ra 0.4um.
Features of 2500L Brewing System
- Medium size: The 2500L brewing system belongs to the medium size range, suitable for all types of breweries, whether they are start-up breweries or established breweries. This scale enables low-volume production and can be expanded to meet growing market demand.
- Efficient production: The 2500L brewing system has efficient production capacity and can produce a large amount of beer in a short period of time. For commercial breweries, this can increase throughput, reduce production time and reduce costs.
- Flexibility: Brewing systems of this size usually have some flexibility and can accommodate different types of beer brewing, including different styles and flavors of beer. This allows winemakers to create a diverse product line that meets the needs of consumers with different tastes.
- Automation and control: Modern 2500L brewing systems are often equipped with advanced automation and control systems that can watch and adjust the brewing process to ensure beer quality and consistency. This automation helps reduce manual operations and improve productivity.
