Beer Fermentation Tank Manufacturer
6-year warranty,competitive price with high quality
CE-PED/ASME/TUV/SGS/IS09001 certificatioh
Laser welding jacket, inner polishing,precision ≤0.4μm
OEM/0DM,Custom-built sizes from pilot 100L to 600HL+
One-stop turnkey brewery solutions available
啤酒发酵罐
We have 50L-200HL+ capacity for you to choose from. If you need help to select suitable beer fermenters for your projects, we are always here to support you. Meto is the most trusted place to purchase the beer fermenters for brewers and distributors.

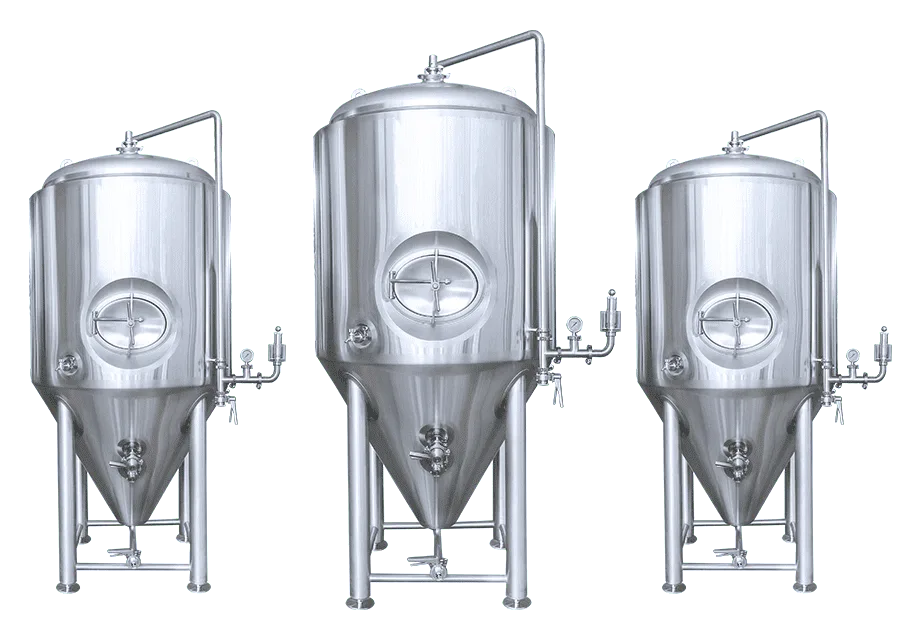

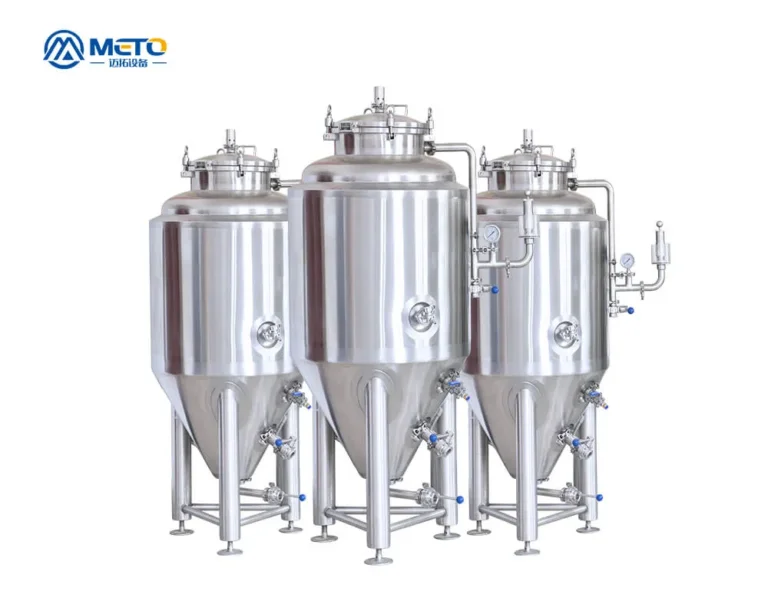

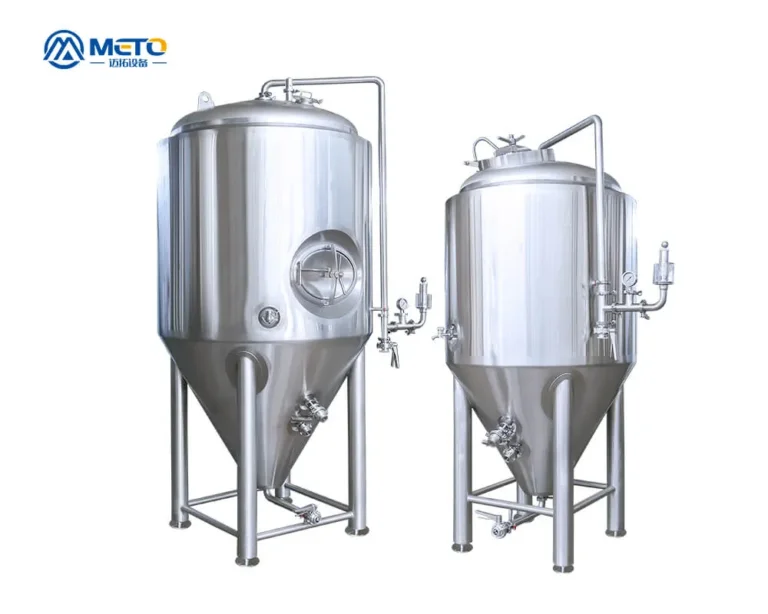

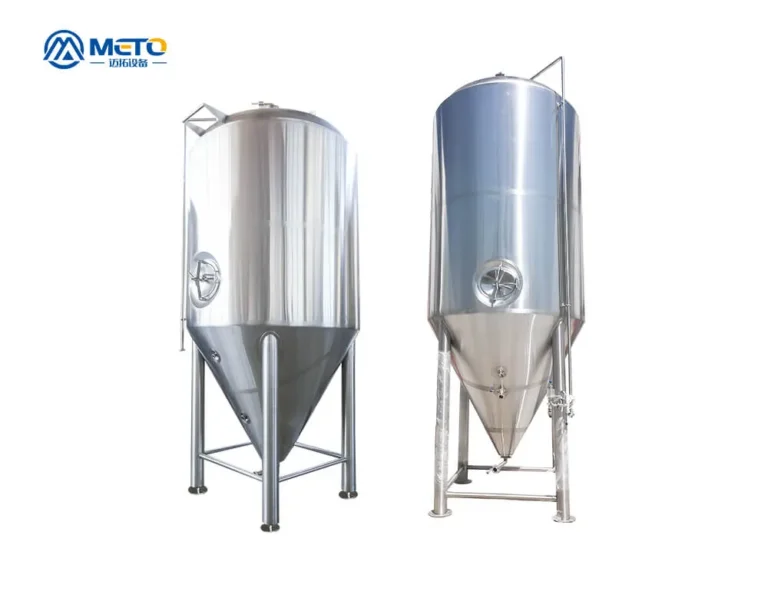

啤酒发酵罐(100L - 200HL)
Standard Configuration of Beer Fermentation Tank
- 水箱容量:自定义(最小水头空间:+25%)
- 内壳:Sus304 全焊接;Th=3 毫米-4 毫米
- 外壳:Sus304 全焊接;厚度=2 毫米

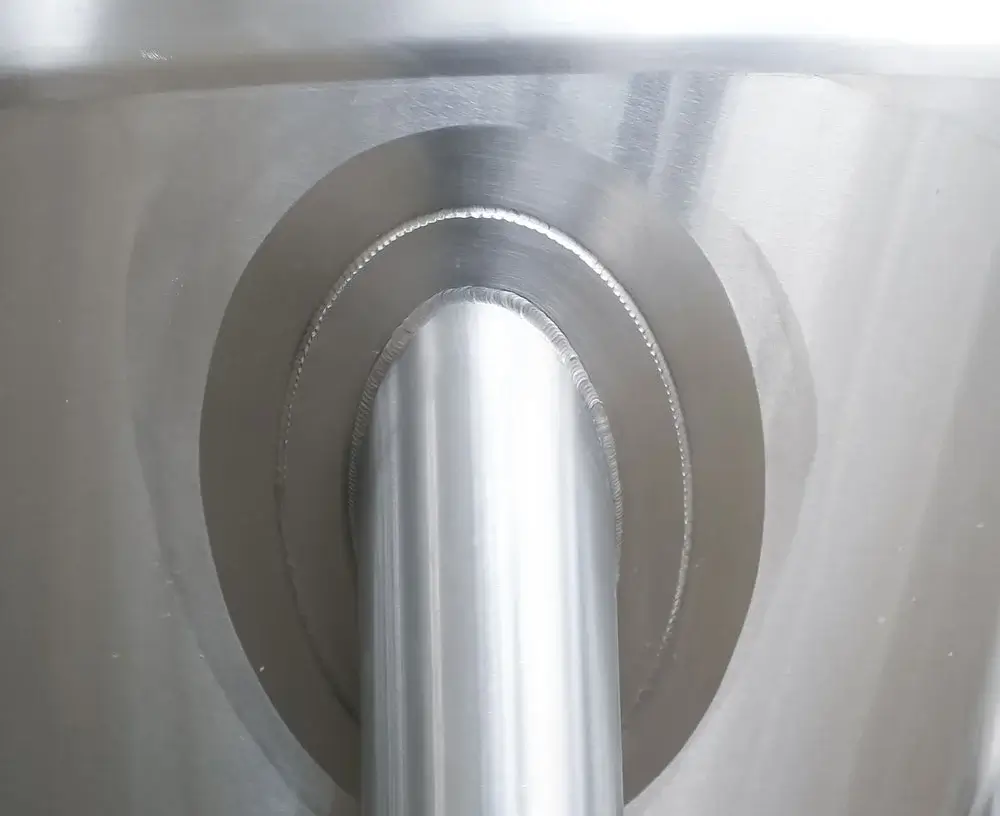

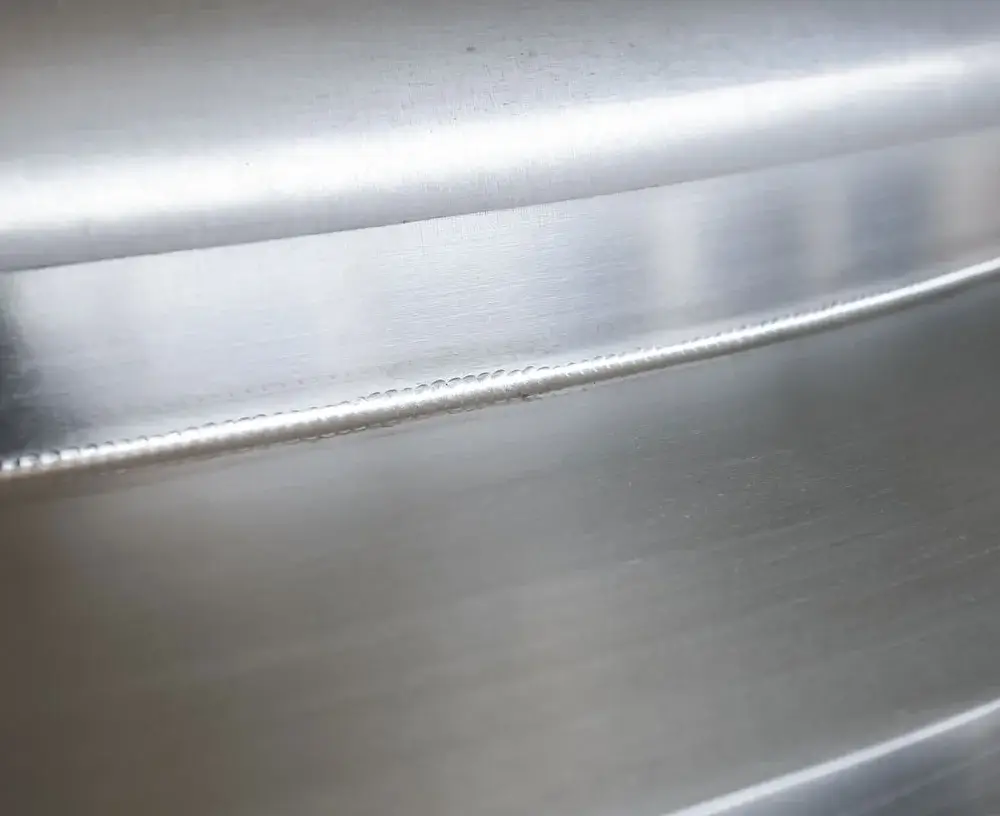

- 100% 使用纯氩气保护罩进行氩弧焊接
- Interior Finish: Sanitary 2B Finish, Passivated
- 外观处理:拉丝板
- 内部全抛光至 0.4 Μm 无死角
- 隔热材料:Th=80毫米,低导热溥
- 冷却夹套底部和侧壁的凹陷板

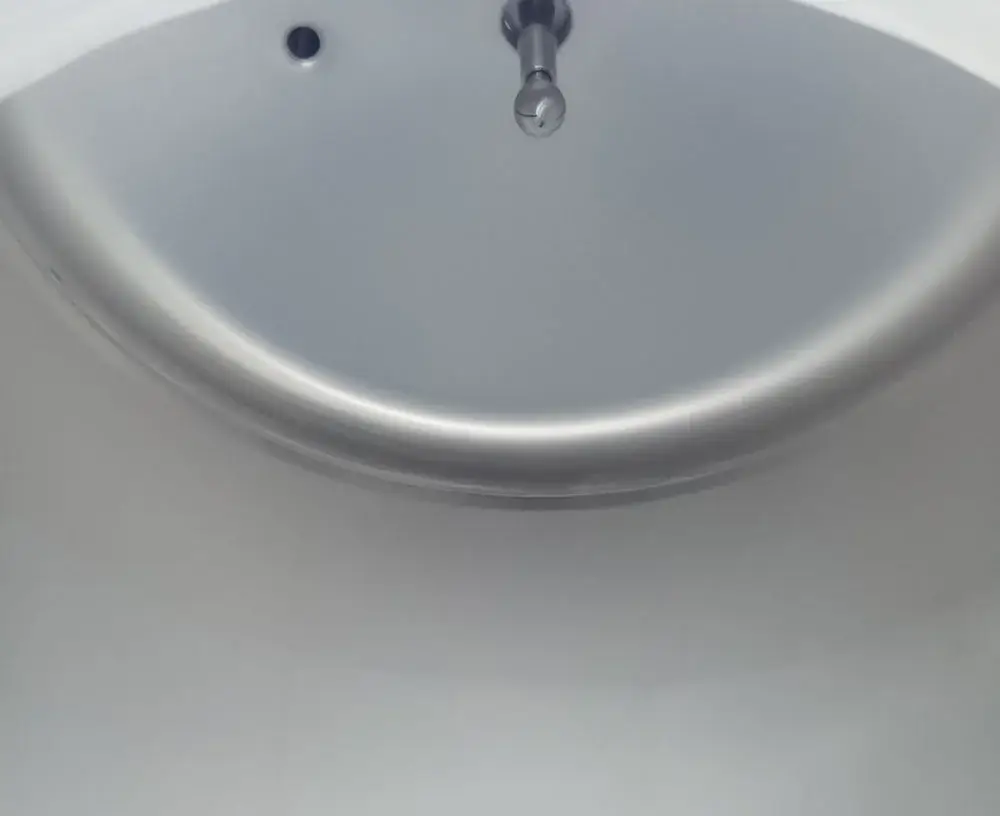

- 圆顶全抛光
- 带 60° 锥度的锥形底部(可定制)

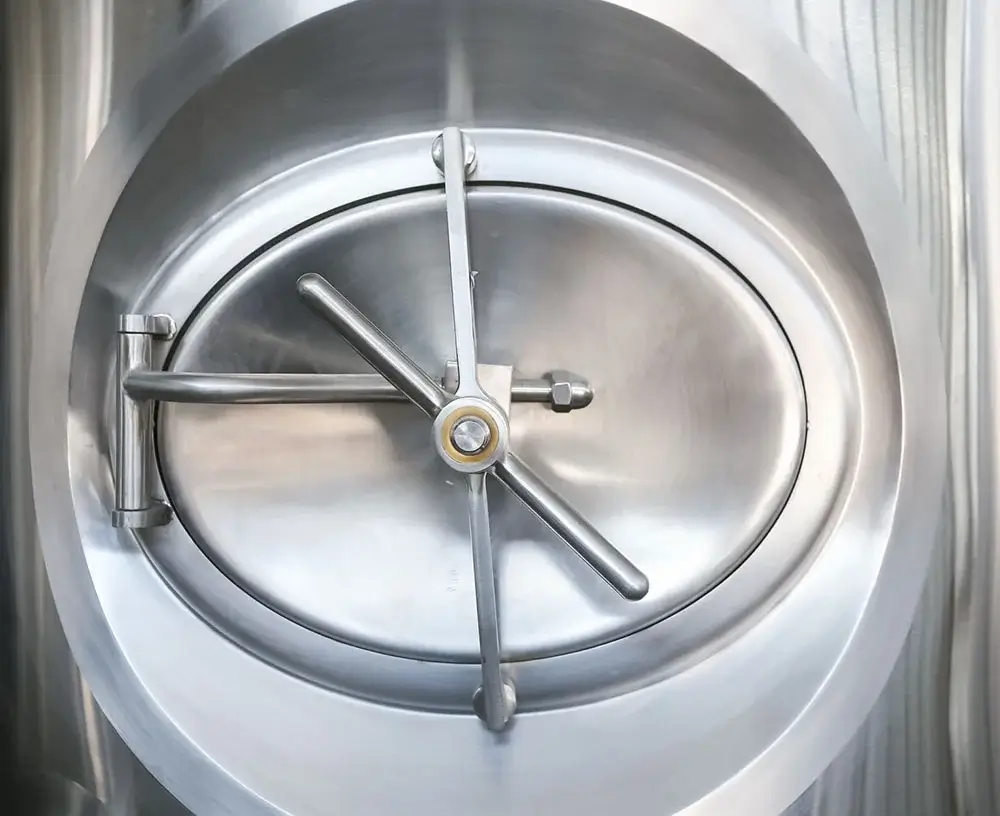

- 顶部或侧面安装的带压门人孔。

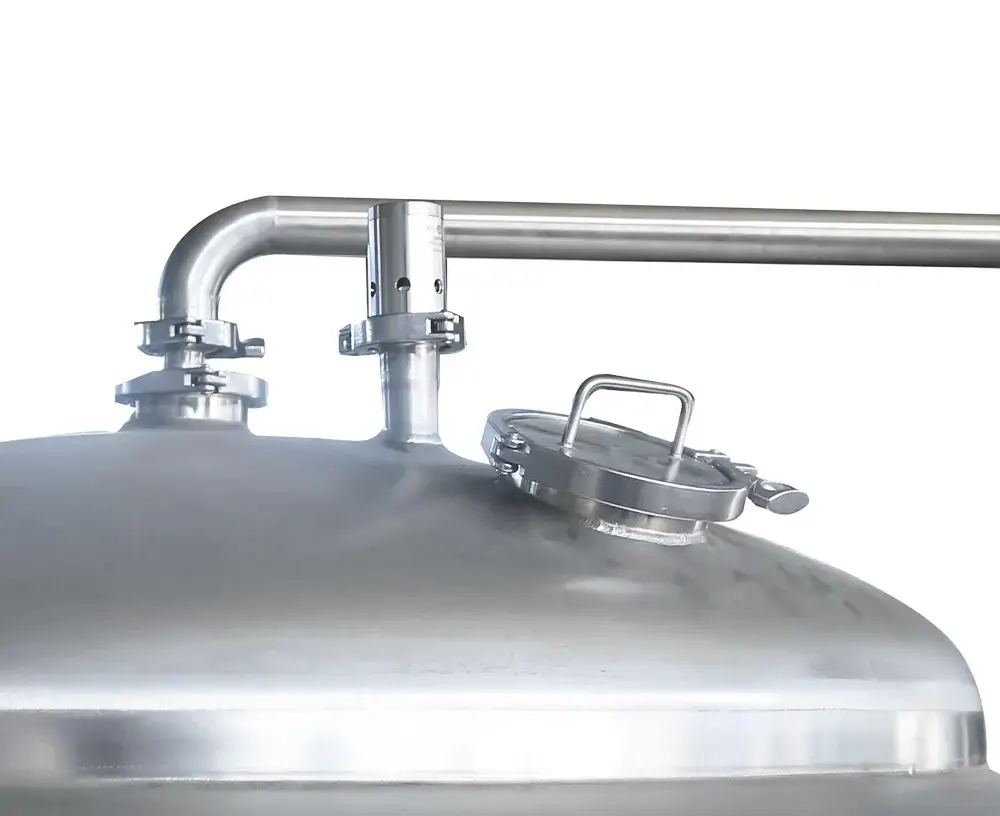

- 顶部安装 360° 旋转 Cip 喷射球
- 带三通连接和蝶阀的 Cip 臂
- Mechanical Safe Valve Prv 2 Bar On Top (BBTS 3 Bar)
- Full Sanitary Sampling Valve/Pressure Gauge On Cip Arm

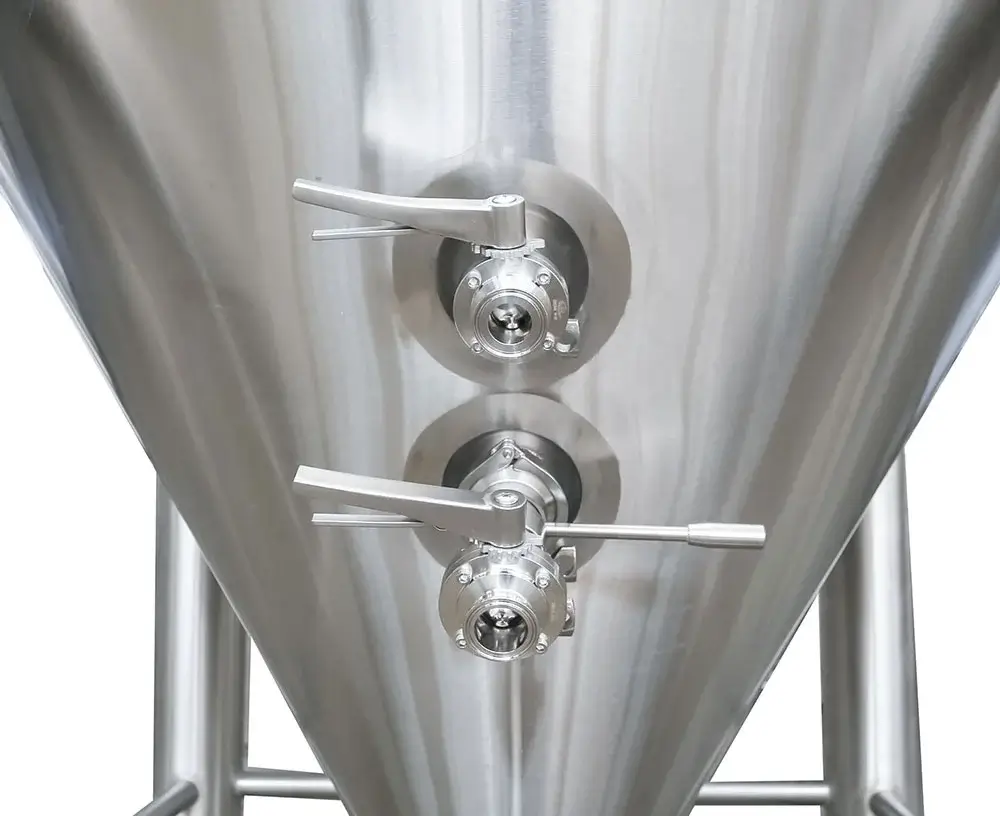

- 带蝶阀的锥形旋转架臂和端口(发酵罐)
- 带蝶阀的卸料臂
- 用于高精度温度传感器的热电偶套管
- 带实心端盖的 4 英寸干式加料口
Glycol Water In/Out Port On Cylinder / Glycol Water In/Out Port On Cone - 压力可调式活塞阀
- 4 件带支架的完全悬挂式 304 支腿
完美发酵的解决方案
让您的酿酒厂项目成为现实!...
无论您是经验丰富的酿酒师还是行业新手,Meto 都能让您轻松实现精酿啤酒。
无与伦比的温度控制
全乙二醇护套和绝缘 在整个酿造过程中实现精确定位,消除热点,确保每次都有完美的风味。
纯净酵母管理
一体化效率(Unitank)
自动化,保证清洁度
关于我们
Global High-end Fermentation Tank Provider
Meto 成立于 2013 年,专注于酿酒设备。"精酿为道,实现梦想"。Meto 致力于成为精酿啤酒从业者值得信赖的合作伙伴。
梅托的出口量已超过 95 个国家 以及欧洲、亚洲、美洲、大洋洲和非洲地区。
设备和服务超过 1,500 精酿啤酒厂
中国的 前十名 工艺酿造设备公司。
20 多项专利技术,国家高新技术企业,通过 ISO 9001、CE Ped 认证、SGS 和 TUV 认证。
常见问题
How long is the dilivery time?
- For standard models, our current delivery time is about 30 days
- 定制配置可能需要更多时间。
- 具体的时间安排将随正式报价一同提供。
Do you provide Installation & Debugging and Technical Service ?
- Installation & Debugging service:
METO technician will train the brewer to produce qualified craft beer.If the customer does not need our technician’s installation, we will also provide the installation diagrams, instructions to help them install by themselves.
- Technical Service:
METO will provide full Beer Brewing Equipment service including the whole brewing flow chart diagram, tanks assembling drawing, the floor plan blueprint, the electrical diagram, brewery space layout design in 3D plant and CAD drawing and also turnkey brewery service.
A
标准保修包括哪些内容?
我们的所有专业系列水箱都配有全面的 6-year warranty 保修范围包括材料和工艺缺陷。我们还提供可选的延长保修计划,让您更放心。
Can the tanks be integrated with
METO 提供安装和调试服务。
METO technician will train the brewer to produce qualified craft beer.
If the customer does not need our technician’s installation, we will also provide the installation diagrams, instructions to help them install by themselves.
Are accessories included with the tank?
Standard accessories include sample valve,pressure relief valve,thermometer,CIP spray ball and so on.Optional add-ons are also available.
咨询专家
如果您想建立自己的梦想酿酒厂,请联系我们。我们有专业的工程师和销售人员为您解答所有问题。
